Product information

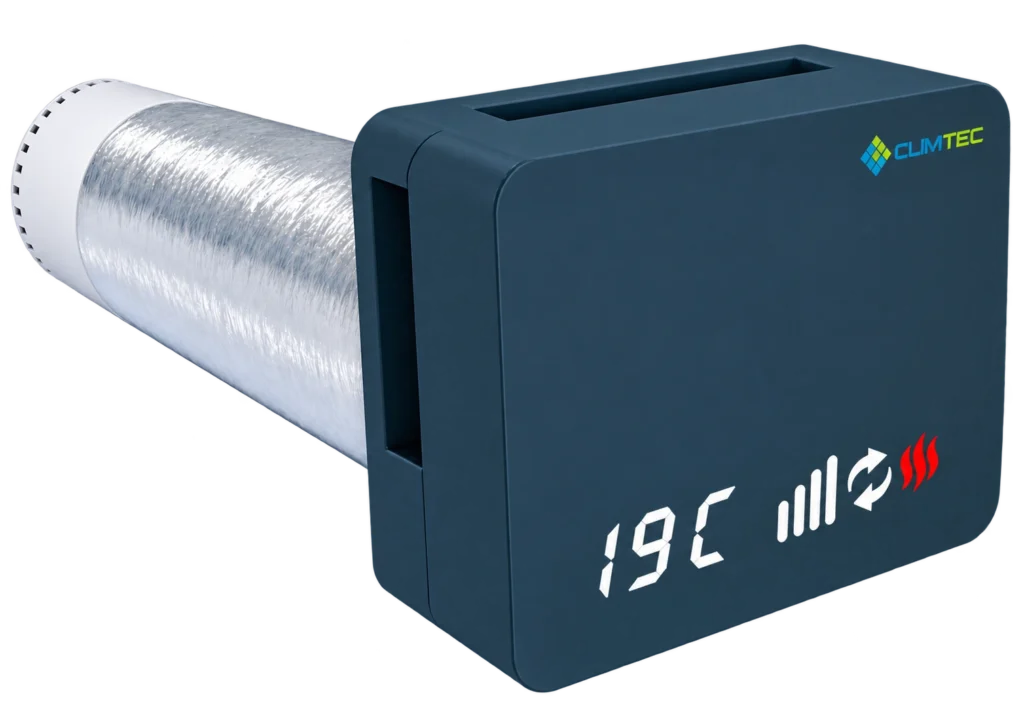

Climtec Optima 200+ Standard Heat Recovery Unit
Decentralised heat recovery unit from the Optima series for living spaces, offices and renovation projects.
Technical specifications
Product specifications
at a glance
| Module | 200 mm |
|---|---|
| Opening | 225 mm |
| Length | 480-1000 mm |
| Front | 320 × 270 mm |
| Heat recovery | up to 93% |
| Recommended room area | up to 90 m² |
Description
For technical
project enquiries
Product for controlled ventilation and fresh indoor air. For technical advice and a tailored quote, please send an enquiry.
Technical Specifications
| Working module diameter without insulation | 200 mm |
|---|---|
| Installation opening diameter | 225 mm |
| Length | 480–1000 mm |
| Front panel dimensions | 320 × 270 mm |
| Weight | 7 kg |
| Heat recovery efficiency | up to 93 % |
| Supply/extract airflow at maximum output | 240/240 m³/h |
| Supply/extract airflow at minimum output | 60/60 m³/h |
| Recommended room area | up to 90 m² |
| Recommended number of occupants | 8 |
| Supply voltage | 220/230 V |
| Power consumption in heat recovery mode without heater | 40 W |
| Heater output | 300 W |
| Sound pressure level min./max. | 22/32 dB |
| Heat exchanger | Yes |
| Airflow shut-off damper | Automatic |
| G4 air filter | Yes |
| LED display panel | Yes |
| CO₂ sensor | Optional |
| Supply air temperature sensor | Yes |
| Outdoor air temperature sensor | Yes |
| Humidity sensor | Yes |
| Condensate channel heating | No |
| Front panel | Yes |
| Remote control: 4 fan speeds; operating modes: heat recovery, air supply, air extraction; timer; clock; LED lighting | Yes |
| App control | No |
| Building management system integration | No |
Documentation
Data sheets, certificates
and product documentation
Relevant product information and technical documentation can be provided on request for designers, installers and project partners.
| Working module diameter without insulation | 200 mm |
|---|---|
| Installation opening diameter | 225 mm |
| Length | 480-1000 mm |
| Front panel dimensions | 320 × 270 mm |
| Weight | 7 kg |
| Heat recovery | up to 93% |
| Supply/extract airflow at maximum output | 240/240 m³/h |
| Supply/extract airflow at minimum output | 60/60 m³/h |
| Recommended room area | up to 90 m² |
| Recommended number of occupants | 8 |
| Voltage | 220/230 V |
| Power consumption in heat recovery mode without heater | 40 W |
| Heater output | 300 W |
| Sound pressure level min./max. | 22/32 dB |
| Heat exchanger | Yes |
| Airflow shut-off damper | Automatic |
| Air filter G4 | Yes |
| LED information panel | Yes |
